Cylinder Head Cover Installation Note

WARNING: This page is about a different variant/trim than selected.

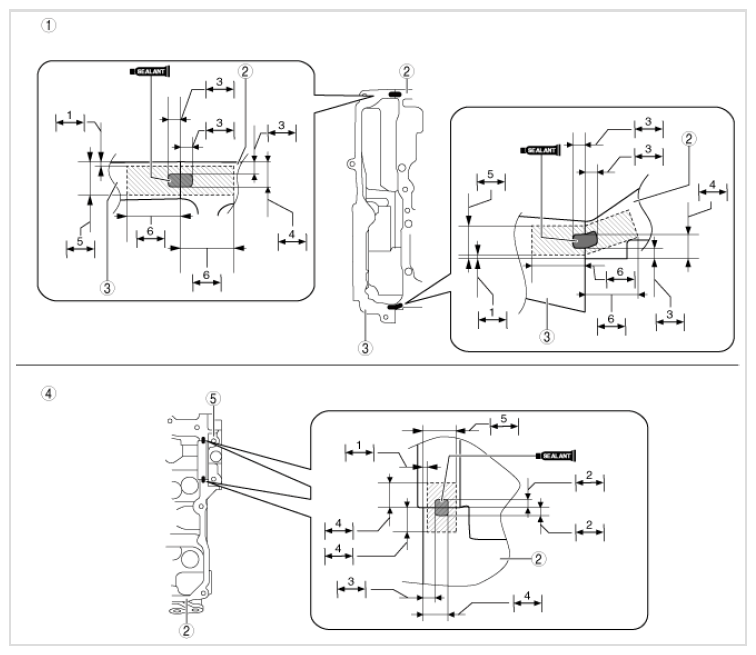

Apply silicone sealant to the positions shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
1	Engine front side
2	Cylinder head
3	Engine front cover
4	Engine rear side
5	Exhaust side rear camshaft cap
	TB1217D
	1 mm {0.04 in}
	2 mm {0.08 in}
	3 mm {0.1 in}
	6 mm {0.2 in}
	8 mm {0.3 in}
	13 mm {0.51 in}

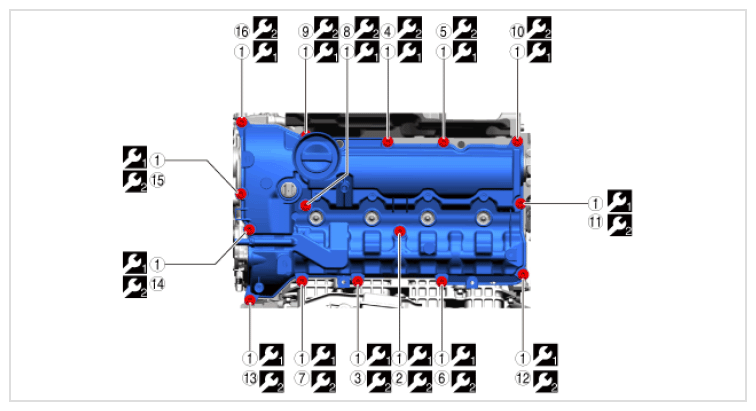

Install the bolts shown in the figure below.

Fig 1: Cylinder Head Cover Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Measure the tightening torque again and verify that it is 6 N.m {61 kgf.cm, 53 in.lbf} or more.
