Precautions when installing the dual-mass flywheel
WARNING: This page is about a different variant/trim than selected.

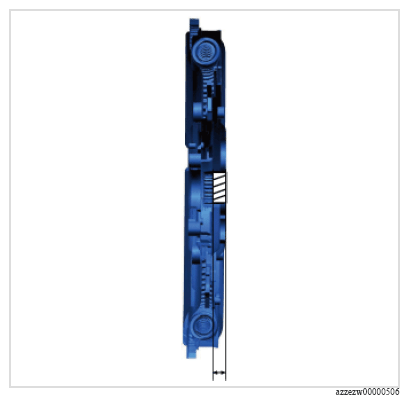

- Apply, to the locations shown in the figure below.SYMBOL AND CONTENT DESCRIPTION
Symbol Content Molybdenum grease application area 10 mm {0.39 in} - Temporarily tighten the bolt.

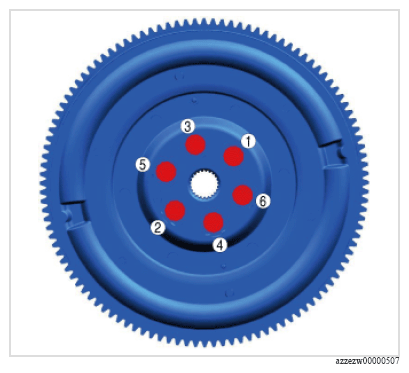

- Tighten the bolts in the order shown in the figure below as follows.SYMBOL AND CONTENT DESCRIPTION
Symbol Content (1) (2)... Servicing procedure - Tighten to 50 N.m {5.1 kgf.m, 36.9 ft.lb}
- Tighten to 80 N.m {8.15 kgf.m, 59 ft.lb}
- Tighten to 156 N.m {15.9 kgf.m, 115.05 ft.lb}
