Screw installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the screws using the procedure shown in the figure below.

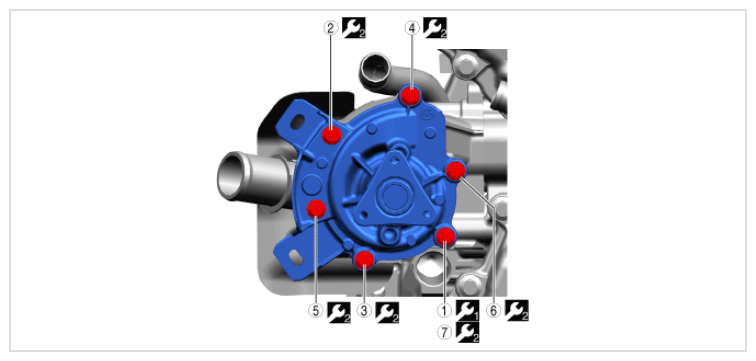

Fig 1: Water Pump Screws Tightening Sequence
G16701657Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Symbol Content
(1) (2)... Servicing procedure
Temporarily tighten
9.5 N.m {97 kgf.cm, 84 in.lbf}
