Remove Intake Oil Shower Pipe: Notes
WARNING: This page is about a different variant/trim than selected.

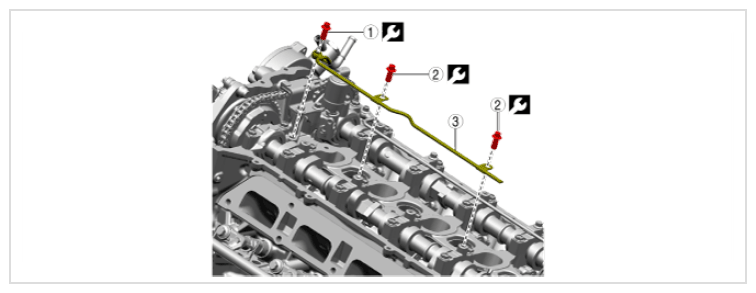

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATIONS
| Procedure | Part name | |
|---|---|---|
| 1 | Bolt (See Bolt installation note ) |
10.5 N.m {107 kgf.m, 93 ft.lb} |
| 2 | Bolt (See Bolt installation note ) |
9 N.m {92 kgf.m, 80 ft.lb} |
| 3 | Intake oil shower pipe | - |
