Intake camshaft removal note

WARNING: This page is about a different variant/trim than selected.

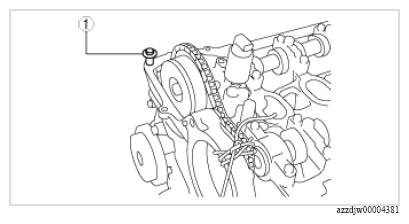

  1. Temporarily install the cylinder head cover bolt to the position shown in the figure below to use it for suspending the timing chain.
    G16699704Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Cylinder head cover bolt
  2. Loosen the camshaft cap bolts in a few passes in the order shown in the figure below and remove the camshaft caps.
    Fig 1: Camshaft Cap Bolts Loosening Sequence
    G16699705Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure
  3. Remove the intake camshaft.
