Exhaust camshaft removal note

WARNING: This page is about a different variant/trim than selected.

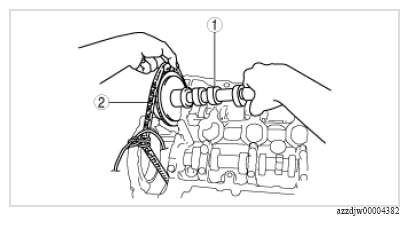

While setting the timing chain aside, remove the hydraulic variable valve timing actuator and the exhaust camshaft as a single unit.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS

Component no	Refer to
1	Exhaust camshaft component
2	Timing chain

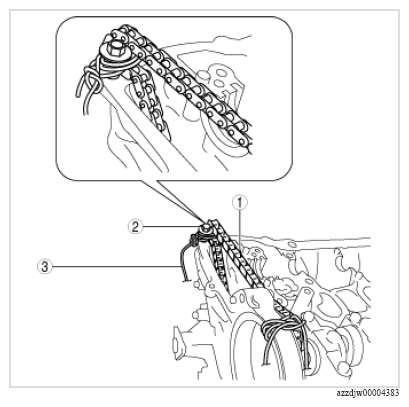

Pull up the timing chain and suspend it using a rope as shown in the figure below.

Courtesy of MAZDA MOTORS CORP.

COMPONENT OPERATIONS
