Water hose connection note

WARNING: This page is about a different variant/trim than selected.
  1. Connect the water hoses as shown in the figure below.
G16700491Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
0-2 mm {0-0.07 in}

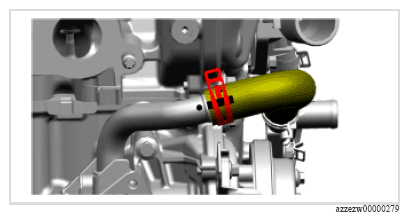

  1. Connect the water hose as shown in the figure below.
G16700493Courtesy of MAZDA MOTORS CORP.
