Section 12 (Engine Mechanical (VIN A) (6 Of 6))
>>
Short Engine Removal/Installation [PYUL]
>>
Remove Engine Accessories
>>
Gasket installation note
Gasket installation note
WARNING:
This page is about a different variant/trim than selected.

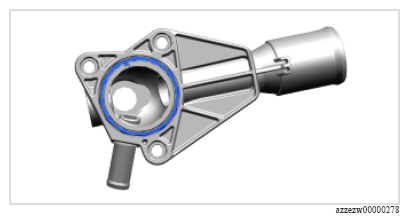

Install the gasket as shown in the figure below.
Courtesy of MAZDA MOTORS CORP.
