Bolt removal note

WARNING: This page is about a different variant/trim than selected.
  1. Loosen the bolts three times in the order shown in the figure below, and remove the bolts.

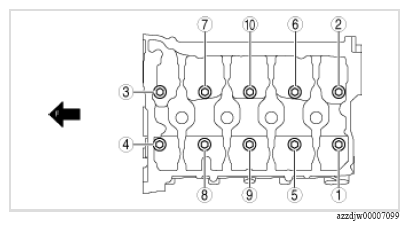

Fig 1: Cylinder Head Bolts Loosening Sequence
G16699722Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
