Crankshaft Pulley Lock Bolt Removal Note

WARNING: This page is about a different variant/trim than selected.

CAUTION:

To prevent damage to the crankshaft pulley, protect the crankshaft pulley with a cloth so that the bar part (49 UN20 5072) of the SST does not contact the crankshaft pulley.
To prevent damage to the engine front cover, be careful not to let the hook part (49 B011 105) of the SST get caught between the crankshaft pulley and engine front cover.

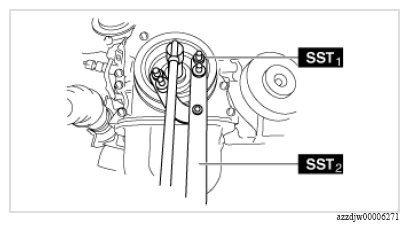

Install the SST to the crankshaft pulley to lock the crankshaft against rotation.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
	49 B011 105
	205-072 (component part for 49 UN20 5072)
