Bolt removal note

WARNING: This page is about a different variant/trim than selected.
  1. Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.
    G16699295Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Alignment mark
  2. Place the engine lifter under the engine/transmission/front crossmember.
    G16699296Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Engine lifter installation area
    2 Support area on front crossmember side
    3 Cross beam installation area

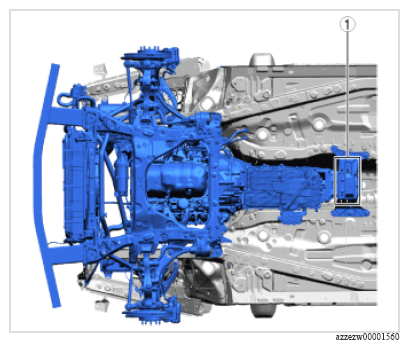

  3. Place the transmission jack under the transmission mount member.
    G16699297Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Transmission jack installation area
  4. Remove the bolts.
