Remove the PCM component

WARNING: This page is about a different variant/trim than selected.
  1. Remove using the procedure shown in the figure below.

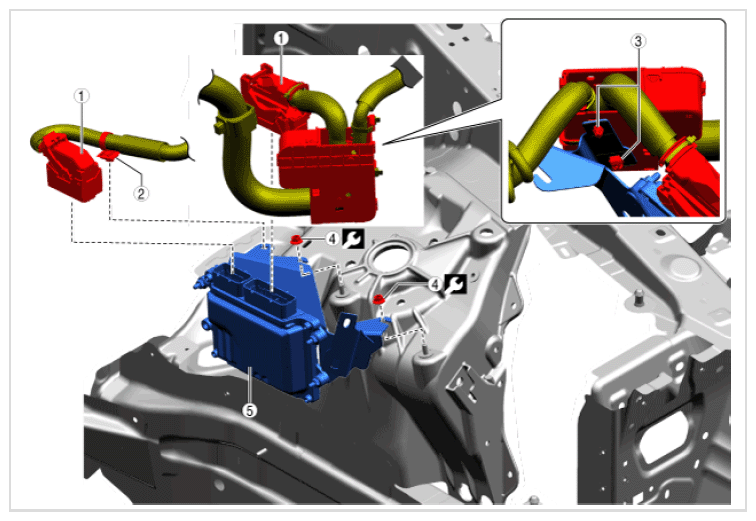

Fig 1: PCM Component And Nut With Torque Specifications
G16701069Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Procedure Part name
1 Connector -
2 Wiring harness clip -
3 Wiring harness clip -
4 Nut 9.5 N.m {97 kgf.m, 84 ft.lb}
5 PCM component -
