High Pressure Fuel Pump Installation Note
WARNING: This page is about a different variant/trim than selected.

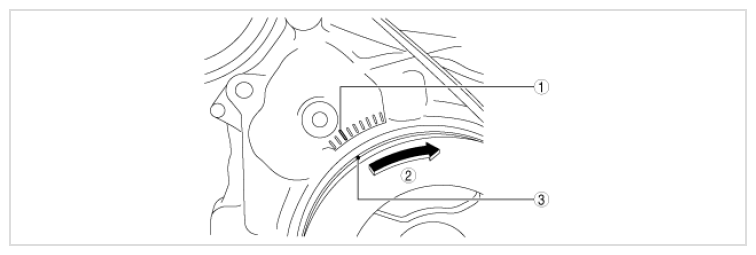

- Rotate the crankshaft clockwise from TDC (position shown in figure) of cylinder No. 1.COMPONENT OPERATIONS
Component no Refer to 1 TDC 2 30° rotation 3 Crankshaft pulley timing mark - Insert the high pressure fuel pump into the rear housing.
- Push the high pressure fuel pump until the O-ring of the high pressure fuel pump is no longer visible.
- Temporarily tighten the high pressure fuel pump mounting bolt until the head of one bolt on each side contacts the high pressure fuel pump.
- Tighten the high pressure fuel pump installation bolt that was not temporarily tightened in 4 procedure and.
- Tighten the high pressure fuel pump installation bolt that was temporarily tightened in 4 procedure and.
