Electric Variable Valve Timing Actuator Removal Note

WARNING: This page is about a different variant/trim than selected.

Mark the timing chain and each actuator with paint so that they can be reassembled in the same condition as before remove.

Courtesy of MAZDA MOTORS CORP.

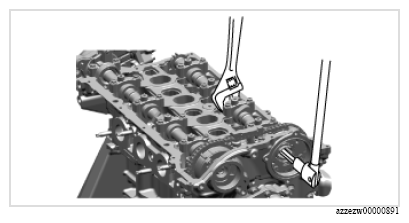

Secure the intake camshaft and the cast hexagon parts of the exhaust camshaft with a wrench and remove the electric variable valve timing actuator installation bolts.

Courtesy of MAZDA MOTORS CORP.
Using a screwdriver wrapped in a cloth, lightly push the electric variable valve timing actuator to the front and separate the intake camshaft and the actuator.

Courtesy of MAZDA MOTORS CORP.
Remove the electric variable valve timing actuator by removing the timing chain from the exhaust and intake. and set it aside to the rear side.

Courtesy of MAZDA MOTORS CORP.

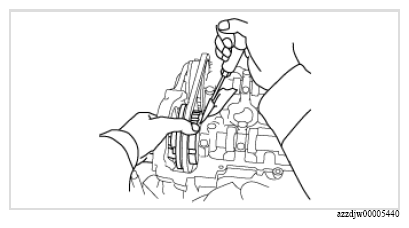

Return the timing chain to the intake camshaft sprocket and pull up the timing chain using a rope as shown in the figure below.

Courtesy of MAZDA MOTORS CORP.
