HLA (Hydraulic Lash Adjuster) Inspection
WARNING: This page is about a different variant/trim than selected.

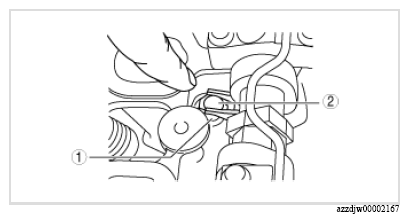

- Press the rocker arm down and verify that the HLA does not go down.
- If the HLA goes down, replace it. (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION [PYUL] )
COMPONENT OPERATIONS
| Component no | Refer to |
|---|---|
| 1 | HLA |
| 2 | Rocker arm |
