Front Oil Seal Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the front oil seal lip using a utility knife.

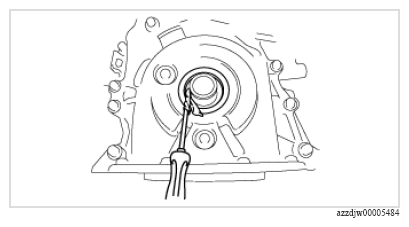

  2. Remove the front oil seal using a flathead screwdriver with the tip protected by a cloth to prevent damage to the crankshaft.
G16700932Courtesy of MAZDA MOTORS CORP.
