Remove Water Pump Drive Belt: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

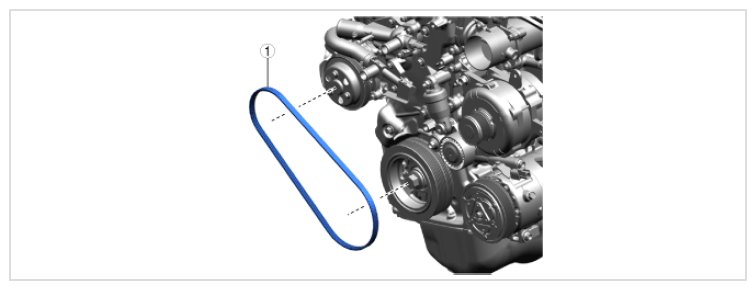

G16700923Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Water Pump Drive Belt
(See WATER PUMP DRIVE BELT REMOVAL NOTE )
(See WATER PUMP DRIVE BELT INSTALLATION NOTE )
