Fastener D Removal Note

WARNING: This page is about a different variant/trim than selected.

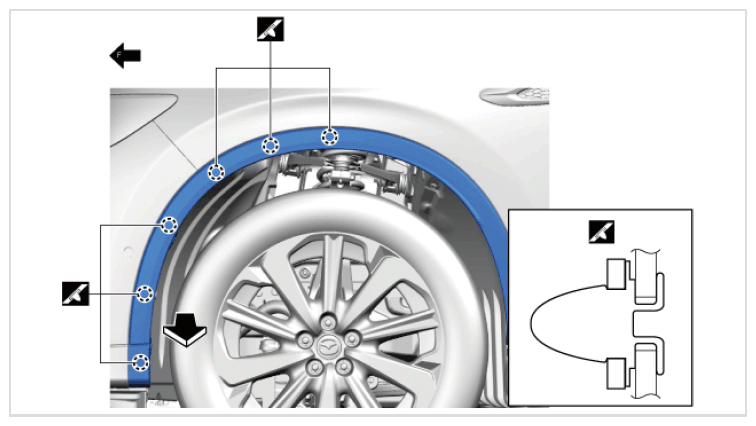

  1. Partially peel back the front over fender upper until fasteners D and bolts B can be removed as shown in the figure below.
    • Figure also shows the left side (same for the right side).
    G16700751Courtesy of MAZDA MOTORS CORP.
  2. Remove fasteners D.
