Remove Vacuum Hose: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

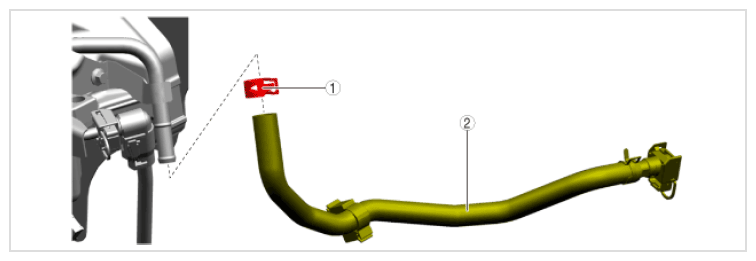

G16700866Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Clip
2 Vacuum hose
(See Vacuum hose installation note )
