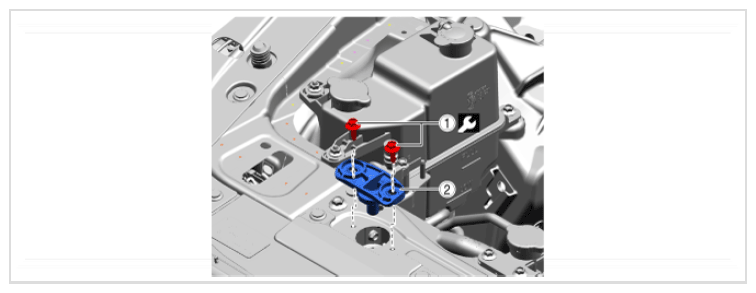

Remove Radiator Mount (RH)
WARNING: This page is about a different variant/trim than selected.
- Remove in the order indicated in the table.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Step |
Part name |
 |
| 1 |
Bolt |
9.5 N.m {95 kgf.cm, 82 in.lb} |
| 2 |
Radiator mount (RH) |
- |
