Remove Insulator (Front No. 1): Notes

WARNING: This page is about a different variant/trim than selected.

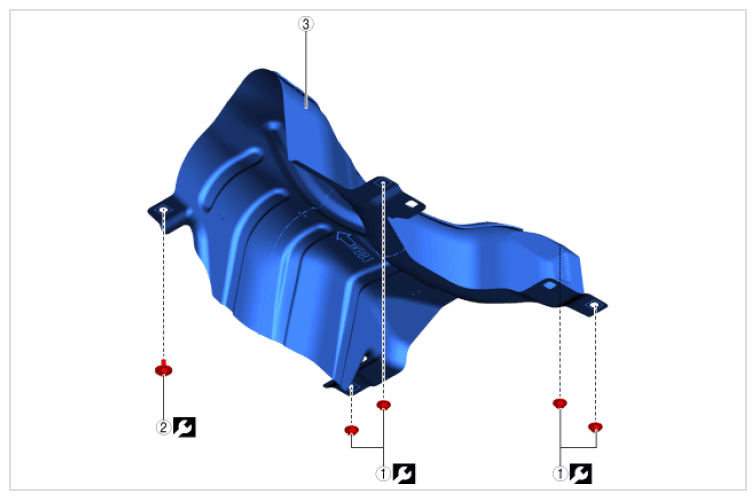

Fig 1: Insulator (Front No. 1) Bolt And Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Nut (See Nut and bolt installation note )	9.5 N.m {95 kgf.cm, 82 in.lb}
2	Bolt (See Nut and bolt installation note )	9.5 N.m {95 kgf.cm, 82 in.lb}
3	Insulator (front No. 1) (See Insulator (front No. 1) installation note )	-
