Remove Front Drive Shaft (LH) (AWD): Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- If the front ABS wheel-speed sensor wiring harness is pulled by mistake when performing this procedure, it could cause open circuit. Before servicing, disconnect the front ABS wheel-speed sensor and set it aside so that the wiring harness will not be pulled by mistake.

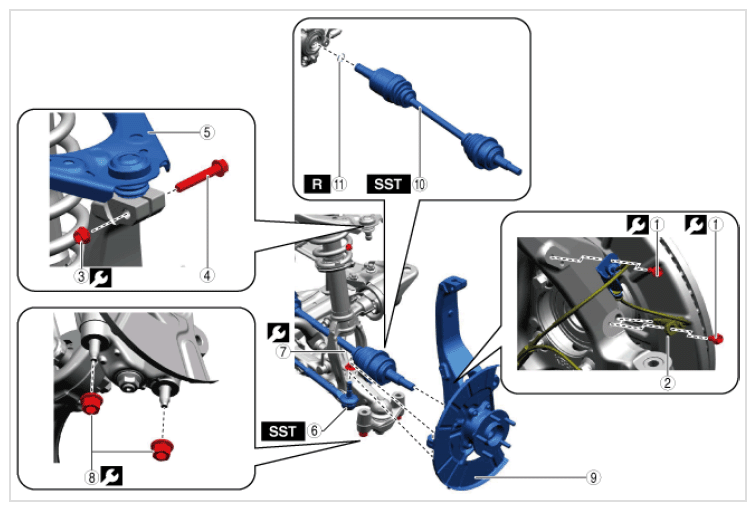

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |||
|---|---|---|---|---|
| 1 | Bolt | - | - | 9.5 N.m {95 kgf.cm, 82 in.lb} |
| 2 | Front ABS wheel-speed sensor (See Front ABS wheel-speed sensor disconnection note ) |
- | - | - |
| 3 | Nut | - | - | 42.5 N.m {4.3 kgf.m, 31.15 ft.lb} |
| 4 | Bolt | - | - | - |
| 5 | Front upper arm ball joint (See Front upper arm ball joint connection note ) |
- | - | - |
| 6 | Tie-rod end (See Tie-rod end disconnection note ) |
- | 49 T028 3A0 | - |
| 7 | Nut | - | - | 74.5 N.m {7.6 kgf.m, 55 ft.lb} |
| 8 | Nut | - | - | 138 N.m {14.05 kgf.m, 101.75 ft.lb} |
| 9 | Steering knuckle, hub component, dust cover (See Steering knuckle, hub component, and dust cover installation note ) |
- | - | - |
| 10 | Front drive shaft (See Front drive shaft removal note ) (See Front drive shaft installation note ) |
- | 49 B025 017 49 B025 010 | - |
| 11 | Front drive shaft clip (See Front drive shaft clip installation note ) |
Replacement part | - | - |
