Remove Front Differential (AWD)
WARNING: This page is about a different variant/trim than selected.

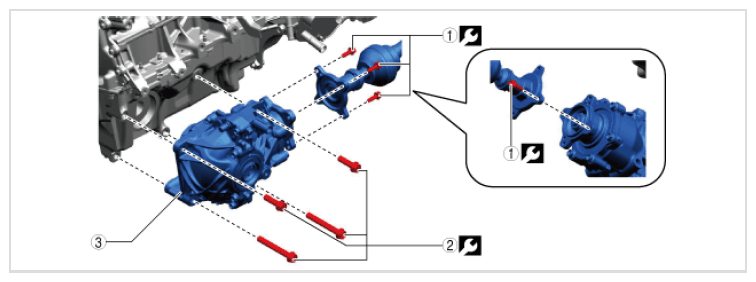

- Remove using the procedure shown in the figure below.
Courtesy of MAZDA MOTORS CORP. TIGHTENING TORQUE SPECIFICATIONS
| Procedure |
Part name |
Applicable condition |
 |
| 1 |
Bolt |
Continuous |
26 N.m {2.65 kgf.m, 19.2 ft.lb} |
| 2 |
Bolt |
Continuous |
76.5 N.m {7.8 kgf.m, 56.4 ft.lb} |
| 3 |
Front differential |
Continuous |
- |
