Engine mount (RH) installation note

WARNING: This page is about a different variant/trim than selected.
  1. Install the bolts by aligning them with the alignment marks on the body side as shown in the figure below.

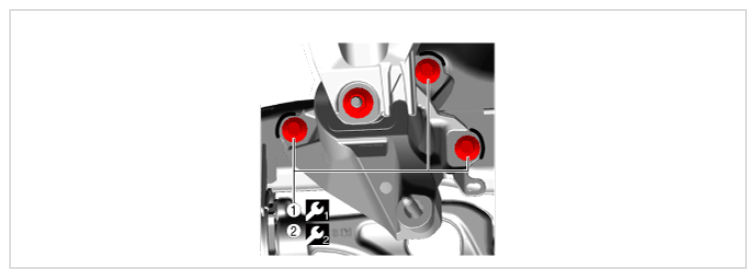

Fig 1: Engine Mount (RH) Bolt And Nut With Torque Specifications
G16700881Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
Temporarily tighten
50 N.m {5.1 kgf.m, 36.9 ft.lb}
