Nut removal note

WARNING: This page is about a different variant/trim than selected.

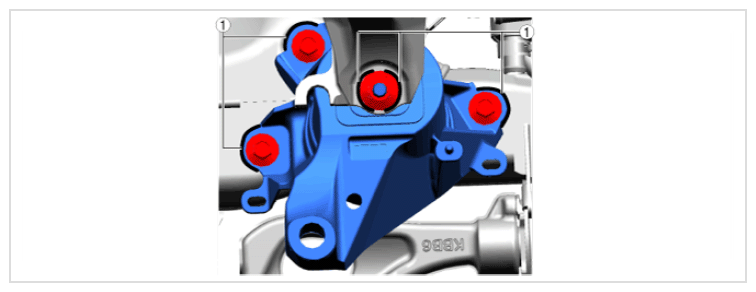

  1. Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.
    G16700869Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Alignment mark
  2. Remove the nuts.

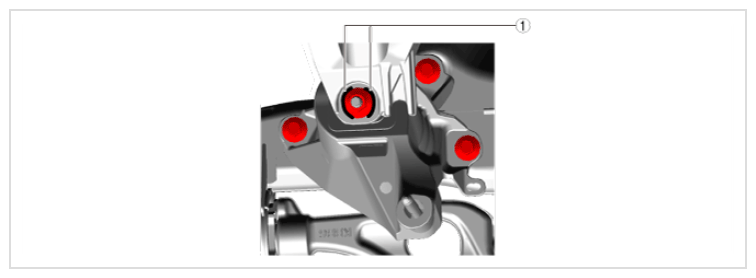

  1. Place alignment marks at the positions shown in the figure below so that they can be assembled to the same positions as before removal.
    G16700870Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    1 Alignment mark
  2. Remove the nuts.
