Nut installation note

WARNING: This page is about a different variant/trim than selected.

Tighten the engine mount (LH) stud bolt.

Fig 1: Engine Mount Stud Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Symbol	Content
	34 N.m {3.45 kgf.m, 25.1 ft.lb}

Install the nuts using the procedure shown in the figure below.
- If the alignment marks have deviated, align them by slightly moving the engine.

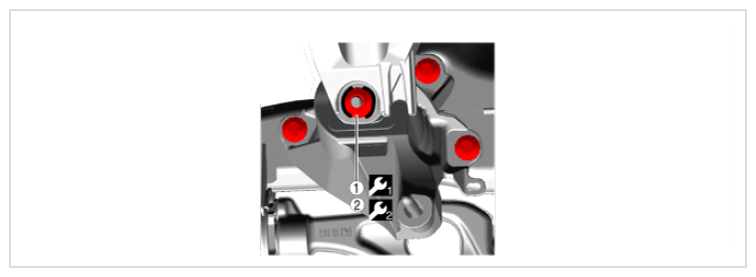

Fig 2: Engine Mount (LH) Stud Bolt With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION
