Engine mount (LH) removal note

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the engine mount (LH) stud bolt.
    • Tighten the stud bolt because it may have loosened.
    Fig 1: Engine Mount Stud Bolt With Torque Specifications
    G16700437Courtesy of MAZDA MOTORS CORP.
    TIGHTENING TORQUE SPECIFICATIONS

    Symbol Content
    34 N.m {3.45 kgf.m, 25.1 ft.lb}

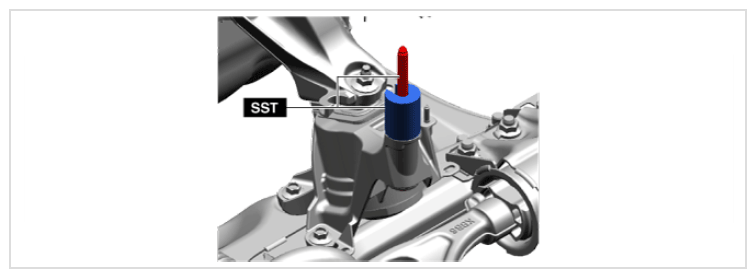

  2. Remove the SST using the procedure shown in the figure below.
    G16700873Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    49 JP01 1A0
  3. Remove the engine mount (LH).
