Engine mount (LH) installation note
WARNING: This page is about a different variant/trim than selected.

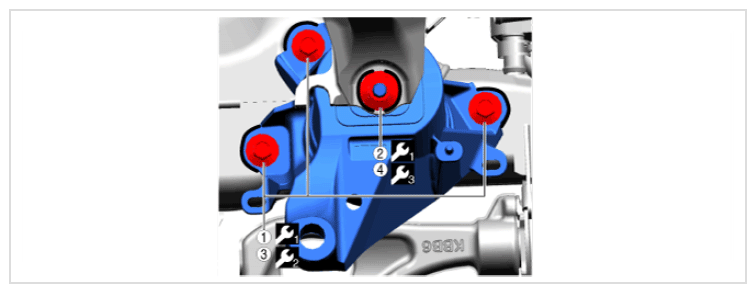

- Align the alignment marks on the body side with the engine mount (LH) and install the bolts and nuts as shown in the figure below.
- If the alignment marks have deviated, align them by slightly moving the engine.

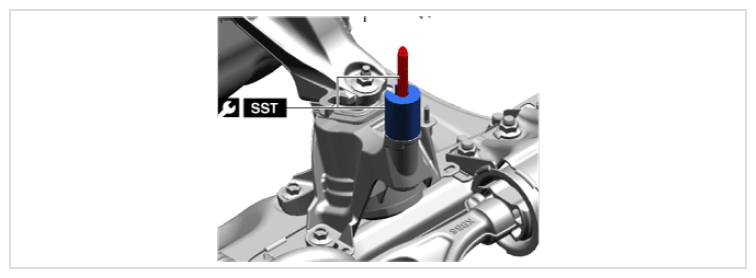

SYMBOL AND CONTENT DESCRIPTIONSymbol Content (1) (2)... Servicing procedure Temporarily tighten 50 N.m {5.1 kgf.m, 36.9 ft.lb} 98 N.m {10 kgf.m, 72.45 ft.lb} - Install the SST using the procedure shown in the figure below.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 49 JP01 1A0 | |
| 83 N.m {8.45 kgf.m, 61.05 ft.lb} |
