Engine coolant hose connection note

WARNING: This page is about a different variant/trim than selected.

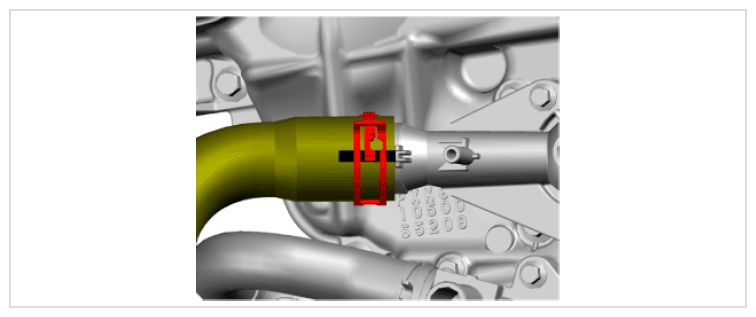

  1. Connect the engine coolant hose as shown in the figure below.
G16700859Courtesy of MAZDA MOTORS CORP.

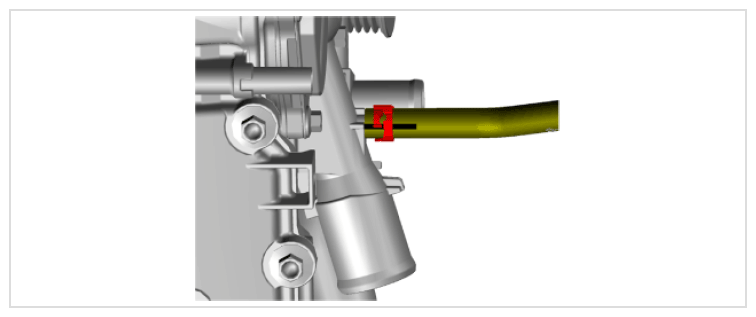

  1. Connect the engine coolant hose as shown in the figure below.
G16700860Courtesy of MAZDA MOTORS CORP.

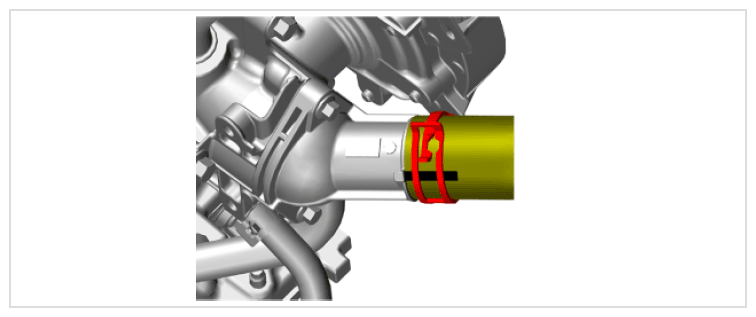

  1. Connect the engine coolant hose as shown in the figure below.
G16700861Courtesy of MAZDA MOTORS CORP.
