Front bumper component removal note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • If the front bumper component and front bumper sliders are forcibly detached, the parts may be damaged. Be careful when detaching the front bumper component from the front bumper sliders.
  • Removing the front bumper component without supporting it could cause the front bumper component to fall and cause serious injury. Always perform the procedure with at least one other person to prevent the front bumper component from falling.

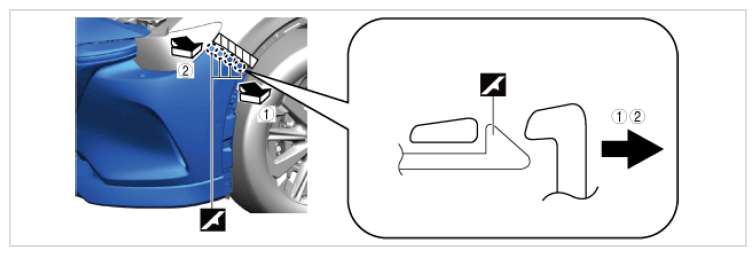

  1. Remove the front bumper component as shown in the figure below.
    • figure below also shows the left side (same for the right side).
    G16699496Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    Protective tape attachment positions
    (1) (2)... Servicing procedure

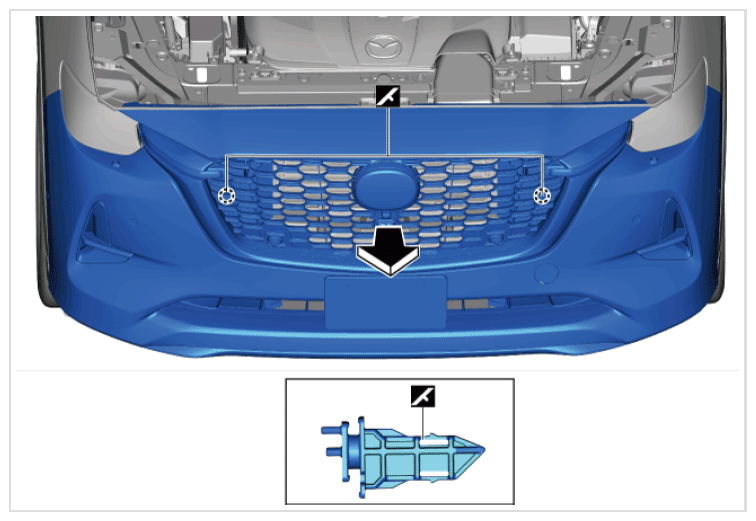

  2. Pull the front bumper in the direction shown in the figure below and remove the locator pin.
    NOTE:
    • If the locator pin is damaged, replace it.
G16699497Courtesy of MAZDA MOTORS CORP.
