Timing chain installation note
WARNING: This page is about a different variant/trim than selected.

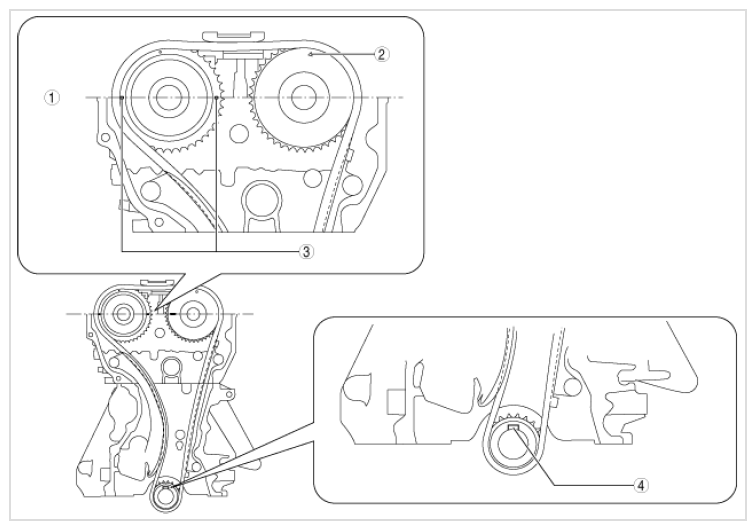

- Verify that the timing mark and the key are in the positions shown in the figure below.SYMBOL AND CONTENT DESCRIPTION

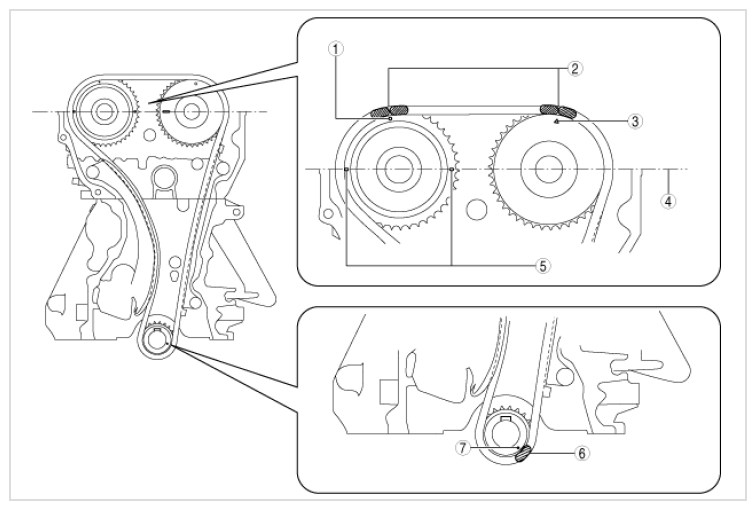

Symbol Content 1 Cylinder head top surface 2 Pin 3 Timing mark 4 Key - Install the timing chain while aligning the alignment mark of the timing chain with each sprocket as shown in the figure below.
SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 1 | Timing chain alignment mark of the hydraulic variable valve timing actuator |
| 2 | Timing chain alignment mark (orange) |
| 3 | Pin |
| 4 | Cylinder head top surface |
| 5 | Timing mark |
| 6 | Crankshaft sprocket timing chain alignment mark |
| 7 | Timing chain alignment mark (yellow) |
