Remove High Pressure Fuel Pump Protector

WARNING: This page is about a different variant/trim than selected.
  1. Remove using the procedure shown in the figure below.

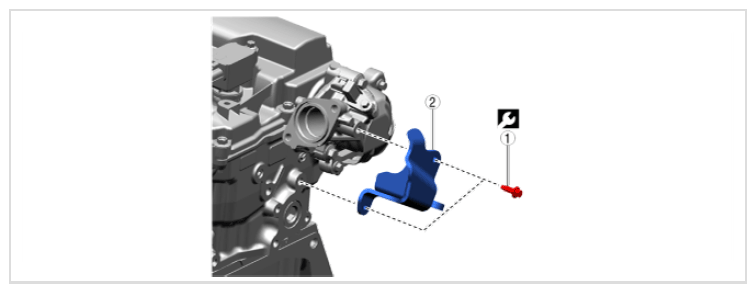

Fig 1: High Pressure Fuel Pump Protector Bolt With Torque Specifications
G16699623Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Procedure Part name
1 Bolt 23 N.m {2.3 kgf.m, 17 ft.lbf}
2 High pressure fuel pump protector -
