Bolt installation note

WARNING: This page is about a different variant/trim than selected.

Temporarily tighten the bolt heads by hand until they contact the fuel distributors.

Rotate the bolts half a turn as shown in the figure below.

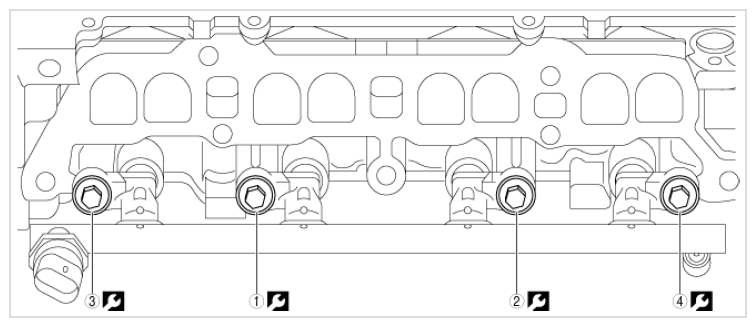

Fig 1: Fuel Distributor Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure
	Half a turn

Rotate the bolts half a turn as shown in the figure below. (1 turn together with Step 2)

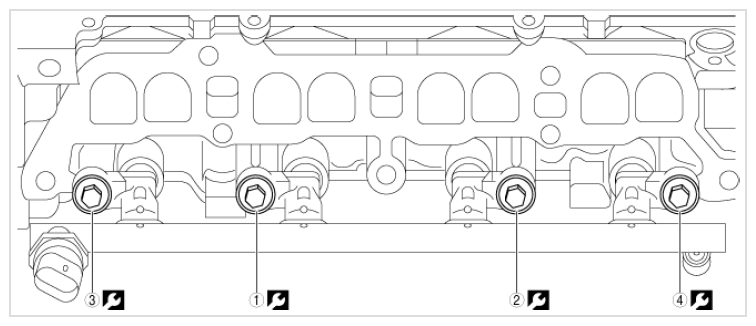

Fig 2: Fuel Distributor Bolts Tightening Sequence

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure
	Half a turn

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure
	23 N.m {2.35 kgf.m, 16.95 ft.lbf}
