Remove Engine Mount Bracket (LH): Notes
WARNING: This page is about a different variant/trim than selected.

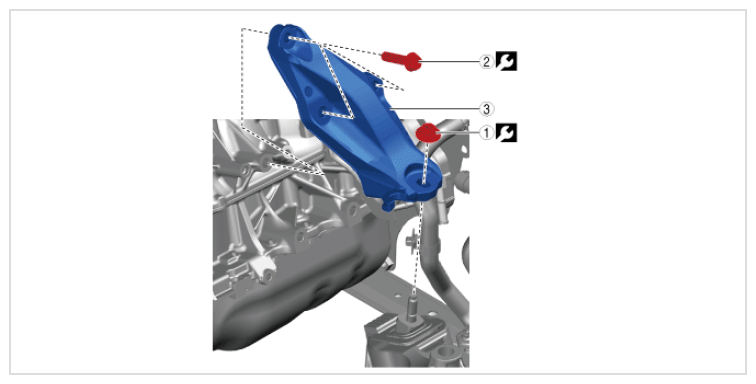

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATIONS
| Procedure | Part name | |
|---|---|---|
| 1 | Nut (See NUT REMOVAL NOTE ) |
98 N.m {10 kgf.m, 72.45 ft.lbf} |
| 2 | Bolt | 67.5 N.m {6.85 kgf.m, 49.6 ft.lbf} |
| 3 | Engine Mount Bracket (LH) | - |
