Remove Cowl Grille: Notes

WARNING: This page is about a different variant/trim than selected.

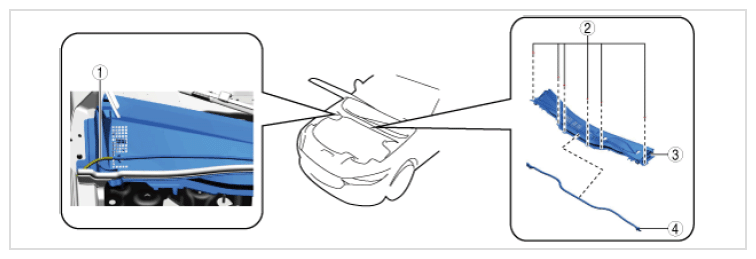

  1. Remove using the procedure shown in the figure below.
G16699438Courtesy of MAZDA MOTORS CORP.
PART NAME DESCRIPTION

Step Part name
1 Washer hose
2 Fastener
3 Cowl grille
(See Cowl grille removal note ).
4 Cowl grille weatherstrip
(See Cowl grille weatherstrip removal note ).
