Chain tensioner installation note
WARNING: This page is about a different variant/trim than selected.
- After installing. chain tensioner, remove the installed wire or paper clip and apply tension to the timing. chain.
- If a new chain tensioner is used, remove the installed stopper.
SYMBOL AND CONTENT DESCRIPTIONSymbol Content 1 Stopper 2 Link plate - Verify the timing chain for looseness and again verify that each sprocket is in place.
- Rotate the crankshaft clockwise twice and inspect the valve timing.

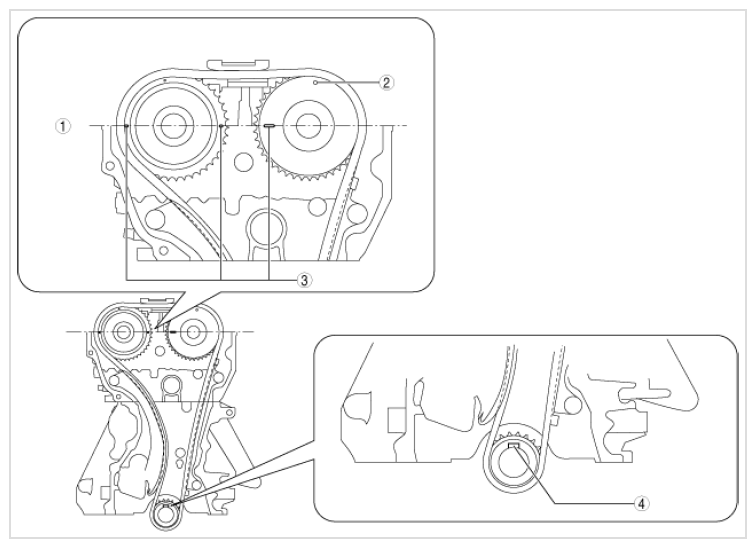

SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 1 | Cylinder head top surface |
| 2 | Pin |
| 3 | Timing mark |
| 4 | Key |
