Remove Chain Guide No. 1: Notes
WARNING: This page is about a different variant/trim than selected.

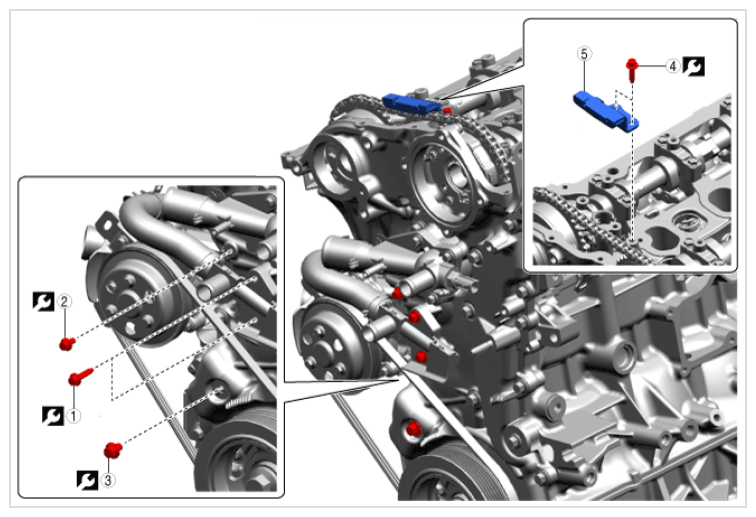

- Remove using the procedure shown in the figure below.
TIGHTENING TORQUE SPECIFICATIONS
| Procedure | Part name | |
|---|---|---|
| 1 | Bolt (See Bolt removal note ) |
9.5 N.m {97 kgf.cm, 84 in.lbf} |
| 2 | Bolt | 9.5 N.m {97 kgf.cm, 84 in.lbf} |
| 3 | Bolt | 20 N.m {2.05 kgf.m, 14.75 ft.lbf} |
| 4 | Bolt | 9.5 N.m {97 kgf.cm, 84 in.lbf} |
| 5 | Chain guide No. 1 | - |
