Chain guide No. 1 installation note
WARNING: This page is about a different variant/trim than selected.
- Install the chain guide No. 1.
- Remove the bolt securing the tensioner arm, and apply tension to the timing chain.
- Rotate the crankshaft clockwise twice and verify that the valve timing is correct.

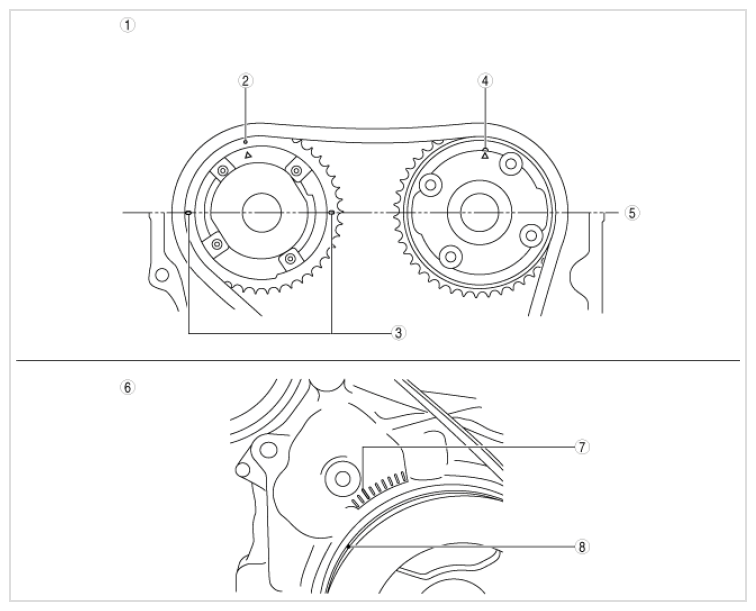

SYMBOL AND CONTENT DESCRIPTION
| Symbol | Content |
|---|---|
| 1 | Camshaft side |
| 2 | Timing chain alignment mark |
| 3 | Timing mark |
| 4 | Pin |
| 5 | Timing chain alignment mark |
| 6 | Crankshaft side |
| 7 | TDC |
| 8 | Timing mark |
