Add Engine Coolant (Main)

WARNING: This page is about a different variant/trim than selected.
  1. Add engine coolant (main) to the top surface of the radiator filler port.
    G16699728Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Bottle

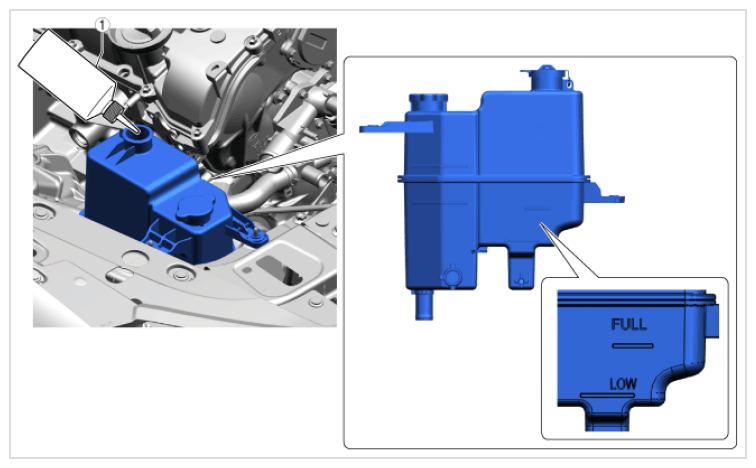

  2. Add engine coolant (main) to the coolant reserve tank up to the FULL line.
    G16699729Courtesy of MAZDA MOTORS CORP.
    COMPONENT OPERATIONS

    Component no Refer to
    1 Bottle
    TOTAL COOLANT AMOUNT (REFERENCE)

    Specification Capacity
    With e-SKYACTIV PHEV 8.6 L {9.1 US qt, 7.6 Imp qt}
    Without e-SKYACTIV PHEV 7.0 L {7.4 US qt, 6.2 Imp qt}
  3. After the engine coolant (main) is added up to the FULL line of the coolant reserve tank, add an additional 0.26 L {0.27 US qt, 0.23 Imp qt.}.
