Opening capsule cover note

WARNING: This page is about a different variant/trim than selected.

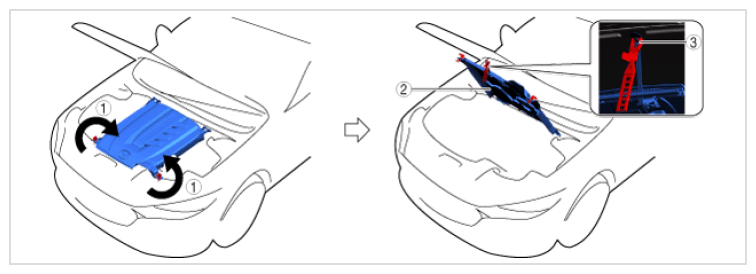

  1. Open the capsule cover as shown in the figure below.
G16699346Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
