Remove Latch Cover Component: Notes
WARNING: This page is about a different variant/trim than selected.

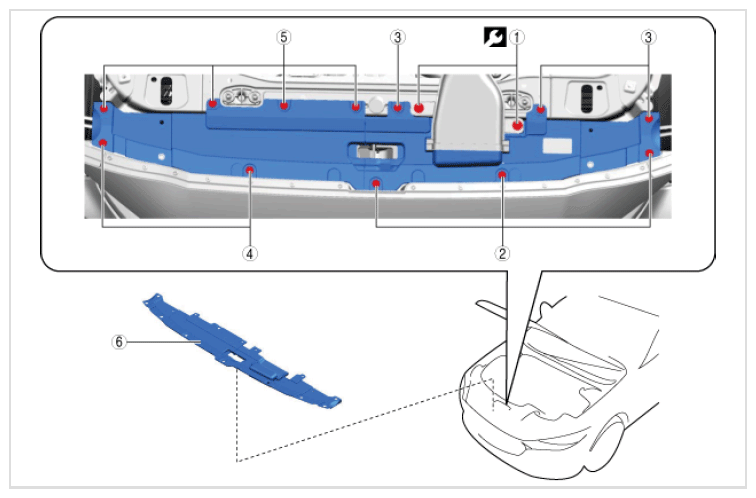

- Remove using the procedure shown in the figure below.
PART NAME DESCRIPTION
| Step | Part name | |
|---|---|---|
| 1 | Bolt | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 2 | Fastener | - |
| 3 | Fastener | - |
| 4 | Fastener | - |
| 5 | Fastener | - |
| 6 | Latch cover component (See Latch cover component removal note ) |
- |
