Remove Inverter Bracket: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

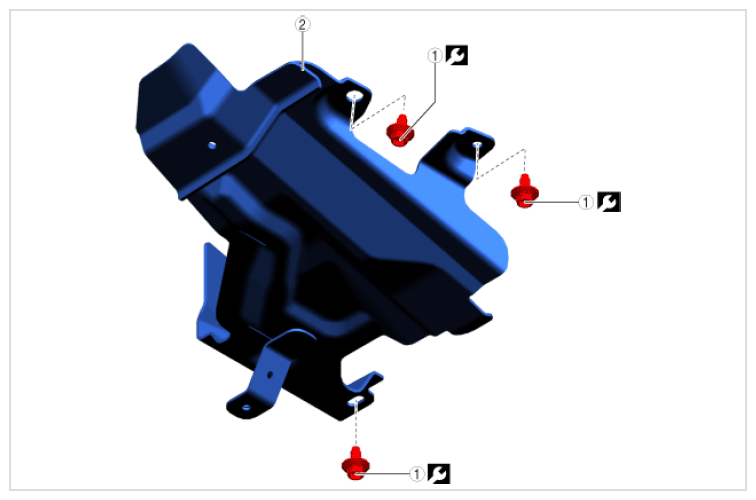

Fig 1: Inverter Bracket Bolt With Torque Specifications
G16699282Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Bolt
(See Bolt installation note )		 26 N.m {2.65 kgf.m, 19.2 ft.lbf}
2 Inverter bracket -
