Remove Insulator Bracket No. 1: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove in the order indicated in the table.

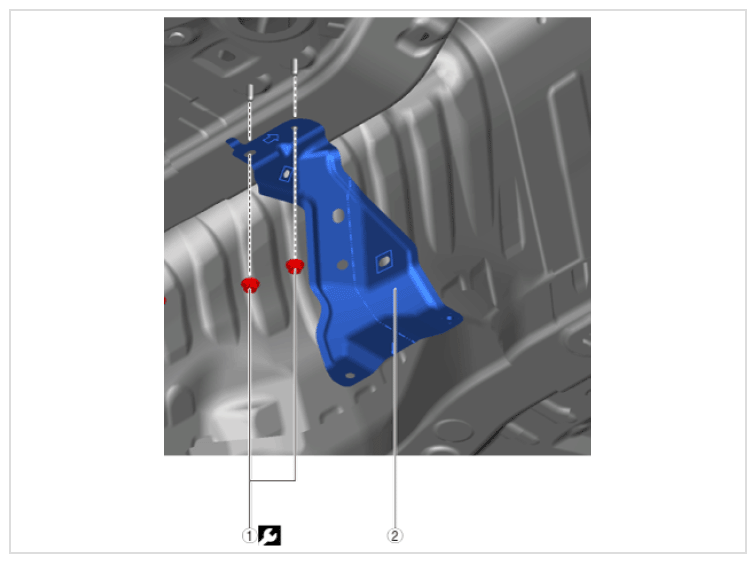

Fig 1: Insulator Bracket No. 1 Nut With Torque Specifications
G16699257Courtesy of MAZDA MOTORS CORP.
TIGHTENING TORQUE SPECIFICATIONS

Step Part name
1 Nut
(See Nut installation note )		 9.5 N.m {95 kgf.cm, 82 in.lbf}
2 Insulator bracket No. 1 -
