Remove Engine Compartment Insulator (RH): Notes
WARNING: This page is about a different variant/trim than selected.

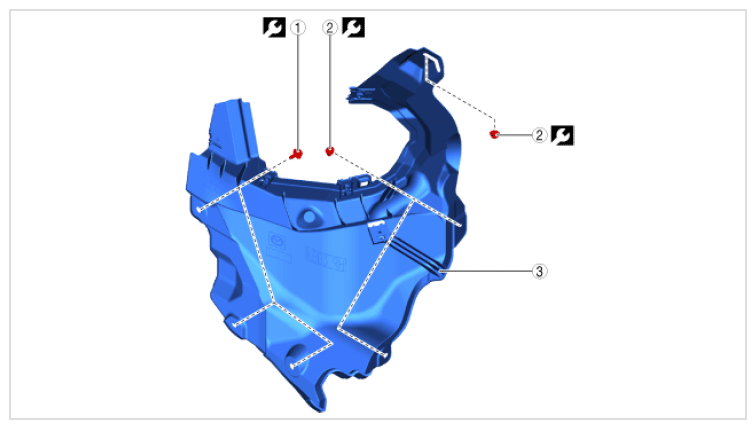

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Screw (See NUT AND SCREW INSTALLATION NOTE ) |
9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 2 | Nut | 9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 3 | Engine compartment insulator (RH) | - |
