Remove Engine Compartment Insulator (Lower): Notes

WARNING: This page is about a different variant/trim than selected.

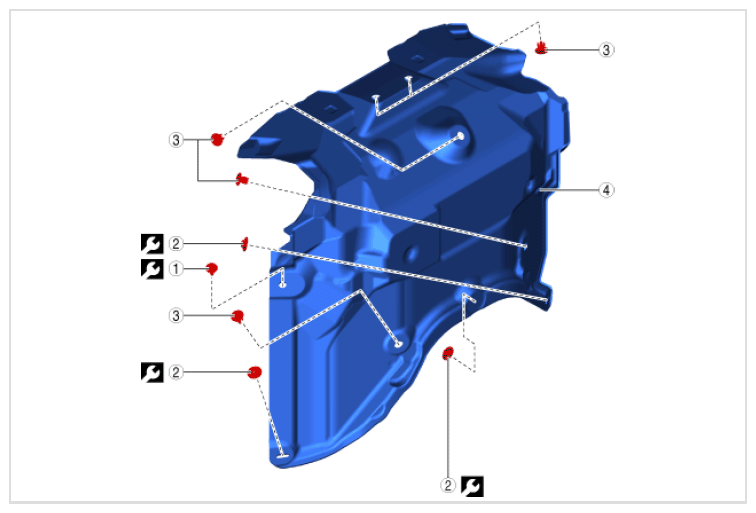

Fig 1: Engine Compartment Insulator (Lower) Bolt And Nut With Torque Specifications

Courtesy of MAZDA MOTORS CORP.

TIGHTENING TORQUE SPECIFICATIONS

Step	Part name
1	Bolt (See FASTENER, NUT, AND BOLT INSTALLATION NOTE )	9.5 N.m {95 kgf.cm, 82 in.lbf}
2	Nut (See FASTENER, NUT, AND BOLT INSTALLATION NOTE )	9.5 N.m {95 kgf.cm, 82 in.lbf}
3	Fastener (See FASTENER, NUT, AND BOLT INSTALLATION NOTE )	-
4	Engine compartment insulator (lower)	-
