Remove Engine Compartment Insulator (LH): Notes
WARNING: This page is about a different variant/trim than selected.

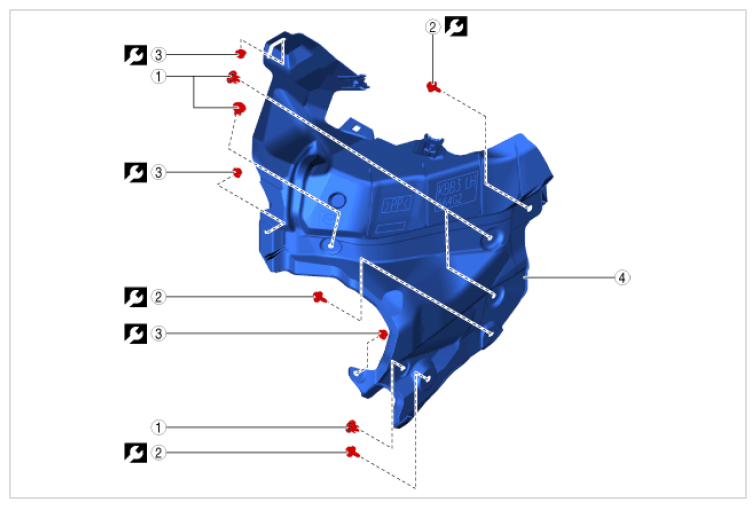

- Remove in the order indicated in the table.
TIGHTENING TORQUE SPECIFICATIONS
| Step | Part name | |
|---|---|---|
| 1 | Fastener | - |
| 2 | Bolt (See Nut and bolt installation note ) |
9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 3 | Nut (See Nut and bolt installation note ) |
9.5 N.m {95 kgf.cm, 82 in.lbf} |
| 4 | Engine compartment insulator (LH) | - |
