Cover assembly removal note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • Release the clips according to the lock/unlock mark on the cowl grille cover.

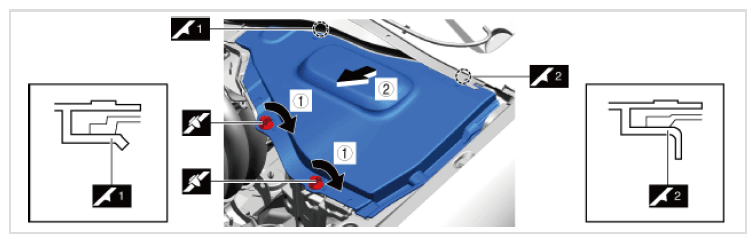

  1. Remove the cover assembly as shown in the figure below.
    • The figure below shows the left side (same as right side).
    G16699157Courtesy of MAZDA MOTORS CORP.
    SYMBOL AND CONTENT DESCRIPTION

    Symbol Content
    (1) (2)... Servicing procedure
