Air cleaner element removal note

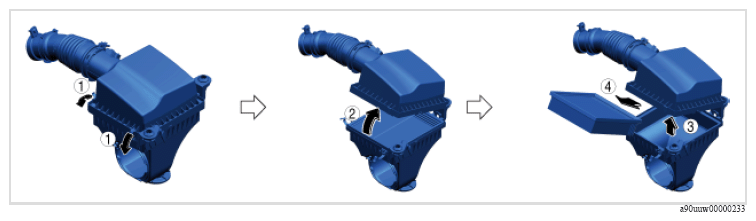

  1. Remove the air cleaner element as shown in the figure
G16702165Courtesy of MAZDA MOTORS CORP.
SYMBOL AND CONTENT DESCRIPTION

Symbol Content
(1) (2)... Servicing procedure
