Intake air pipe component installation note

Insert the pipe straight to the end of the quick release connector.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure

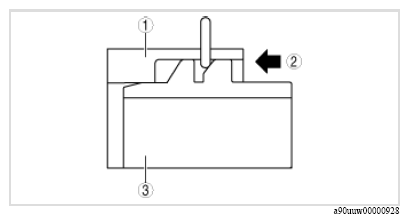

Insert the quick release connector into the pipe until a click is heard.

Courtesy of MAZDA MOTORS CORP.

SYMBOL AND CONTENT DESCRIPTION

Symbol	Content
(1) (2)...	Servicing procedure
