Structural View

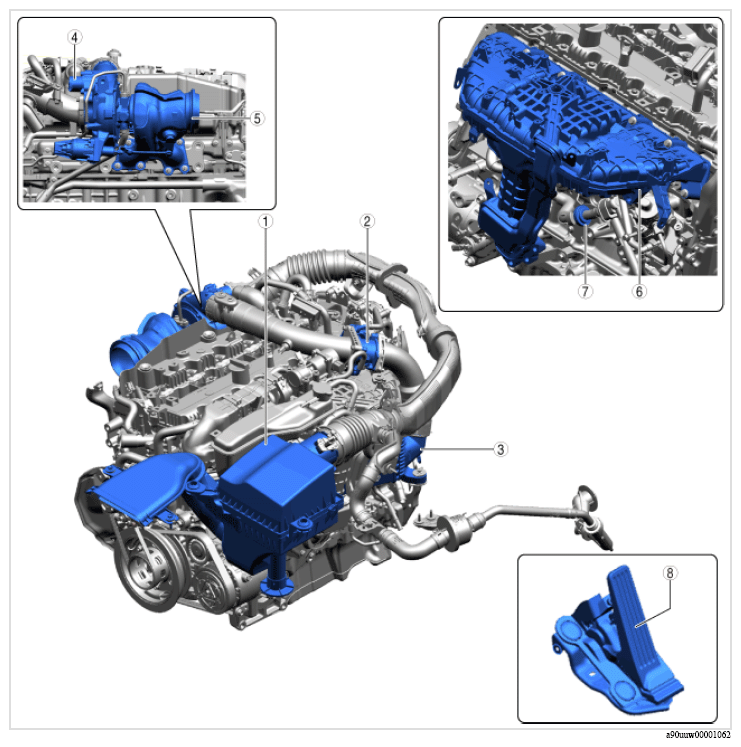

Fig 1: Intake-Air System Components Location

Courtesy of MAZDA MOTORS CORP.

INTAKE-AIR SYSTEM COMPONENT OPERATIONS

Component No.	Refer to
1	Air cleaner (See AIR CLEANER REMOVAL/INSTALLATION [H3T] ). (See AIR CLEANER ELEMENT REMOVAL/INSTALLATION [H3T] ). (See AIR CLEANER ELEMENT INSPECTION [H3T] ).
2	Throttle body (See THROTTLE BODY REMOVAL/INSTALLATION [H3T] ). (See THROTTLE BODY INSPECTION [H3T] ).
3	Water-cooled charge air cooler (See WATER-COOLED CHARGE AIR COOLER REMOVAL/INSTALLATION [H3T] ). (See WATER-COOLED CHARGE AIR COOLER INSPECTION [H3T] ).
4	Air bypass valve (See AIR BYPASS VALVE REMOVAL/INSTALLATION [H3T] ). (See AIR BYPASS VALVE INSPECTION [H3T] ).
5	Twinscroll turbocharger (See TWINSCROLL TURBOCHARGER REMOVAL/INSTALLATION [H3T] ). (See TWINSCROLL TURBOCHARGER INSPECTION [H3T] ).
6	Intake manifold (See TWINSCROLL TURBOCHARGER REMOVAL/INSTALLATION [H3T] ). (See TWINSCROLL TURBOCHARGER INSPECTION [H3T] ).
7	Check valve (intake-air system) (See CHECK VALVE (INTAKE-AIR SYSTEM) REMOVAL/INSTALLATION [H3T] ). (See CHECK VALVE (INTAKE-AIR SYSTEM) INSPECTION [H3T] ).
8	Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [H3T] ).
